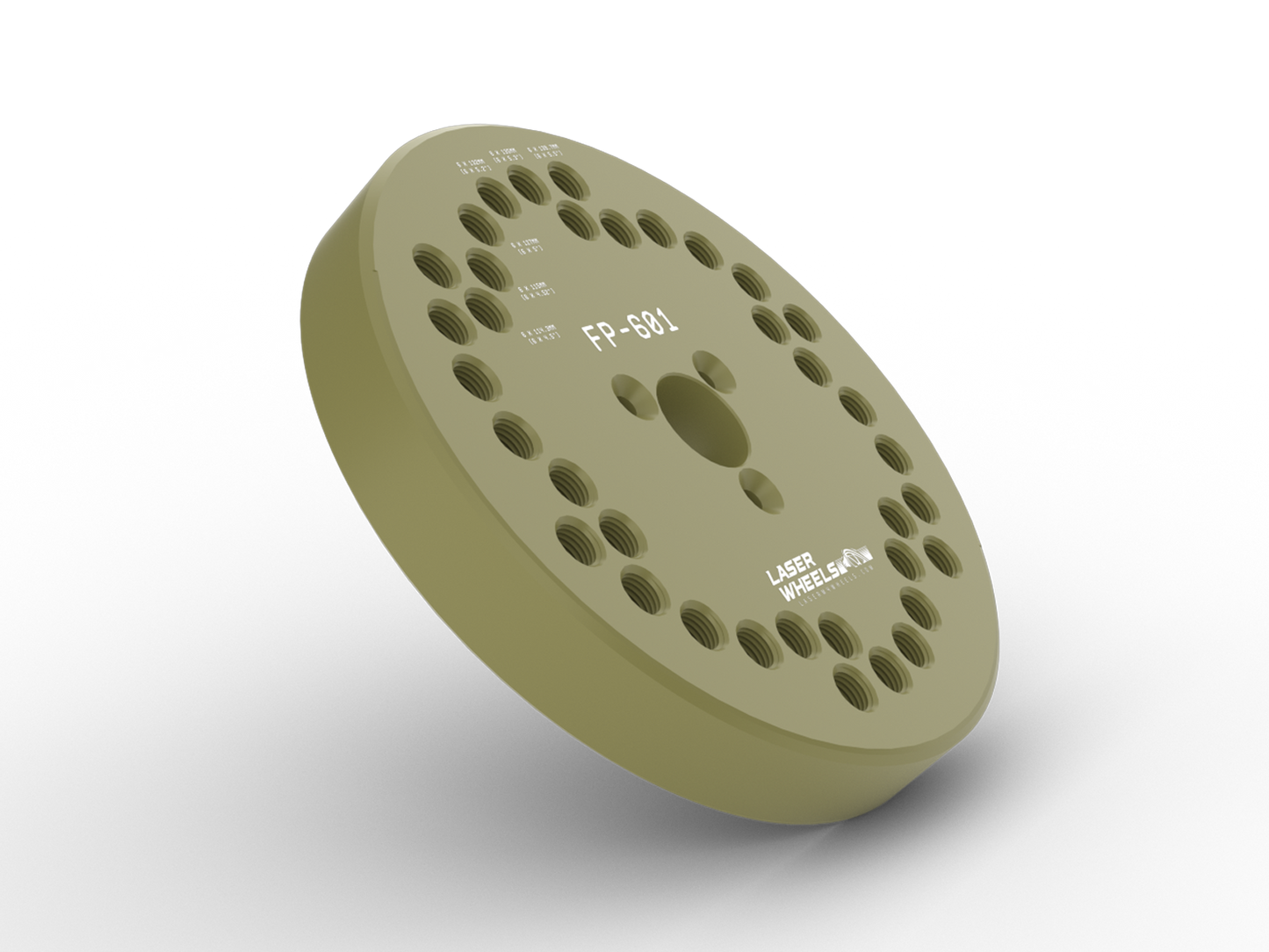

FP-6 Series Multi-Lug Rotary 6-Lug Fixturing Plate

Our FP-Series fixturing plates offer a savings of approximately 30%, as well as significantly reducing the amount of tool storage required over our individual, single series plates by allowing users to work with multiple lug patterns in a single plate!

Designed for fixturing wheels on our Laser My Wheels Rotary Fixturing Kit

Lug patterns are laser marked for ease-of-use.

Overview:

6061 aluminum, machined and threaded to match multiple 6-lug pattern wheels.

• Anodized Copper, and laser marked with identifying information for ease of use
• Holes are tapped to 7/16-14 thread
• Self-Centering
• Manufacturing lead time of 2-3 weeks.

Lug Patterns:

FP-601 accepts the following lug patterns:

• 6x114.3 (6x4.5)
• 6x115 (6x4.52)
• 6x127 (6x5)
• 6x132 (6x5.2)
• 6x135 (6x5.3)
• 6x139.7 (6x5.5)
