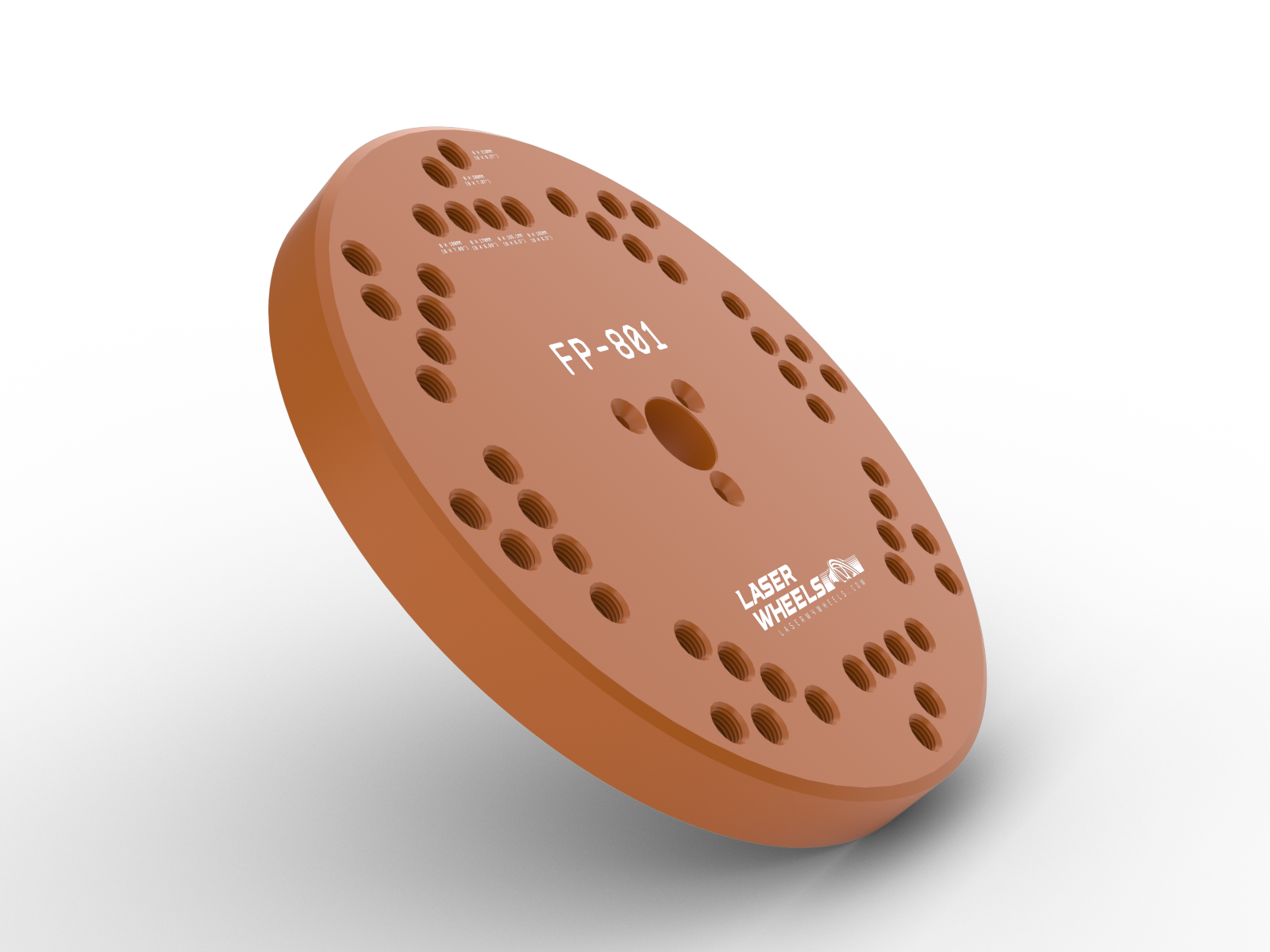

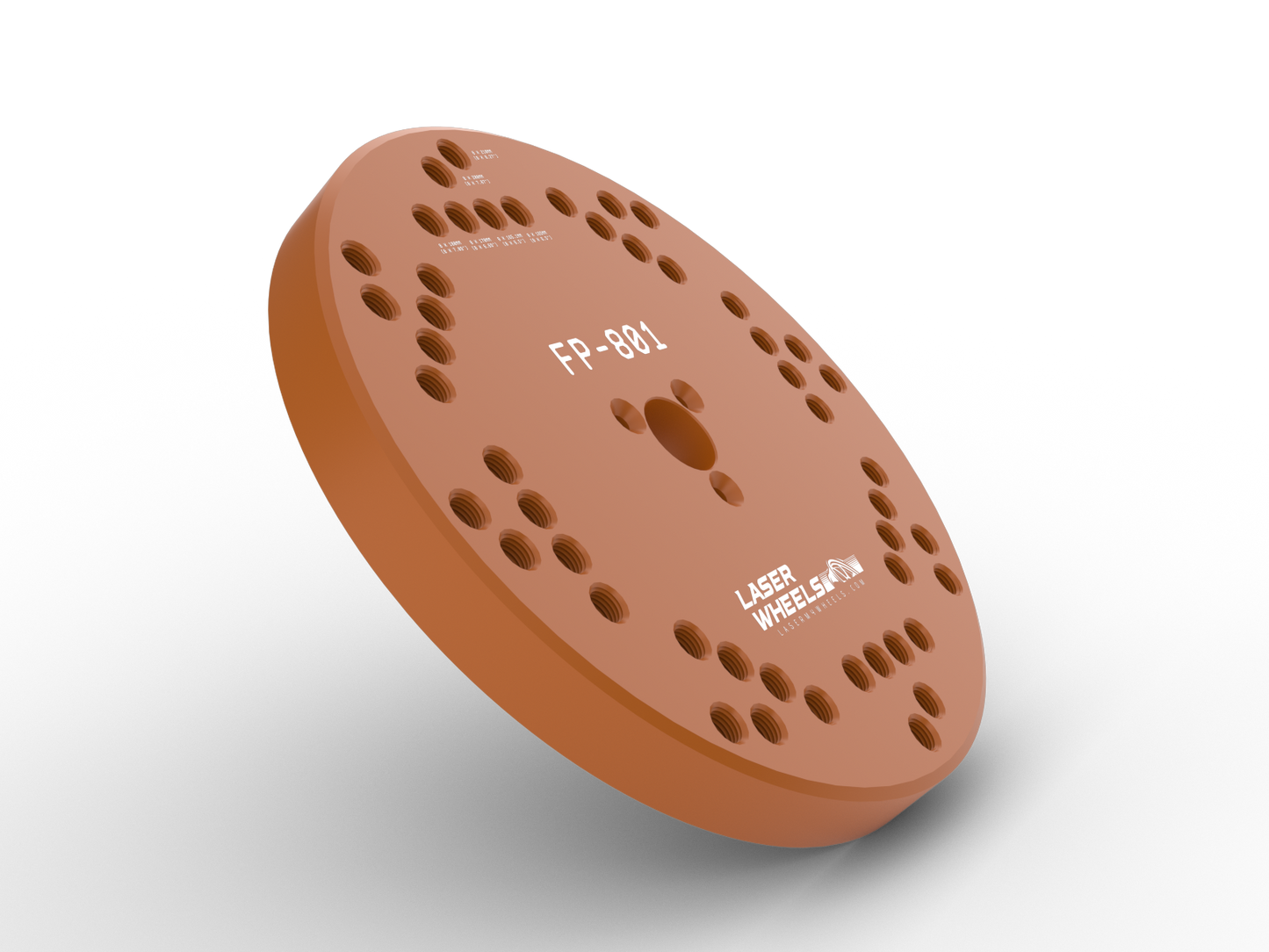

FP-8 Series Multi-Lug Rotary 8-Lug Fixturing Plate

Our FP-Series fixturing plates offer a savings of approximately 30%, as well as significantly reducing the amount of tool storage required over our individual, single series plates by allowing users to work with multiple lug patterns in a single plate!

Designed for fixturing wheels on our Laser My Wheels Rotary Fixturing Kit

Lug patterns are laser marked for ease-of-use.

Overview:

6061 aluminum, machined and threaded to match multiple 8-lug pattern wheels.

• Anodized Orange, and laser marked with identifying information for ease of use
• Holes are tapped to 7/16-14 thread
• Self-Centering
• Manufacturing lead time of 2-3 weeks.

Lug Patterns:

FP-801 accepts the following lug patterns:

• 8x165 (8x6.5)
• 8x165.1 (8x6.5)
• 8x170 (8x6.69)
• 8x200 (8x7.87)
